Product Details:
|
| Laser Source: | Raycus Max IPG NLIGHT Optional | Laser Power: | 1000W 1500W 2000W 3000W 6000W Optional |
|---|---|---|---|
| Cutting Speed: | 120M/MIN | Maximum Acceleration: | 1.8G |
| Working Area: | 3015 4020 6025 Optional | Repeating Accuracy: | ±0.03mm |
| Cooling Mode: | Water Cooling | Electricity Demand: | 380V 50Hz/60Hz |
| After-sales Service: | Engineers Can Serve Overseas | ||
| High Light: | 3000W CNC Fiber Laser Cutting Machine,1000W CNC Fiber Laser Cutting Machine,Double Exchange Table CNC Laser Cutter |
||
Workbench:
the carbon fiber laser cutting machine workbench using top and intensive type,with the design of elevating high speed double work table,which can prepare for the next feeding during working,it improve the working efficiency .
Slagging system:
lower bed is equipped with partition to collect ,which can gather the waste and the small component in the process of production.
Dust removal system:
the laser cutting machine workbench uses partition vacuuming design, equipped with external oil extraction, which is used for removing dust flue gas and so on in the process of production.
Transmission system:
the small fiber laser cutting machine transmission system uses German ATLAMTA pinion and rack for accurate transmission and Japan servo motor
Control system:
The fiber laser cutting machine operating system can use editing software and secondary development tool to customize the special interface and function,it is easy for customers to create their own man-machine interface.
Features for fiber metal laser cutting machine

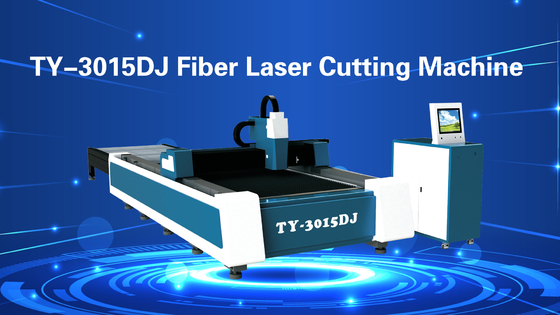

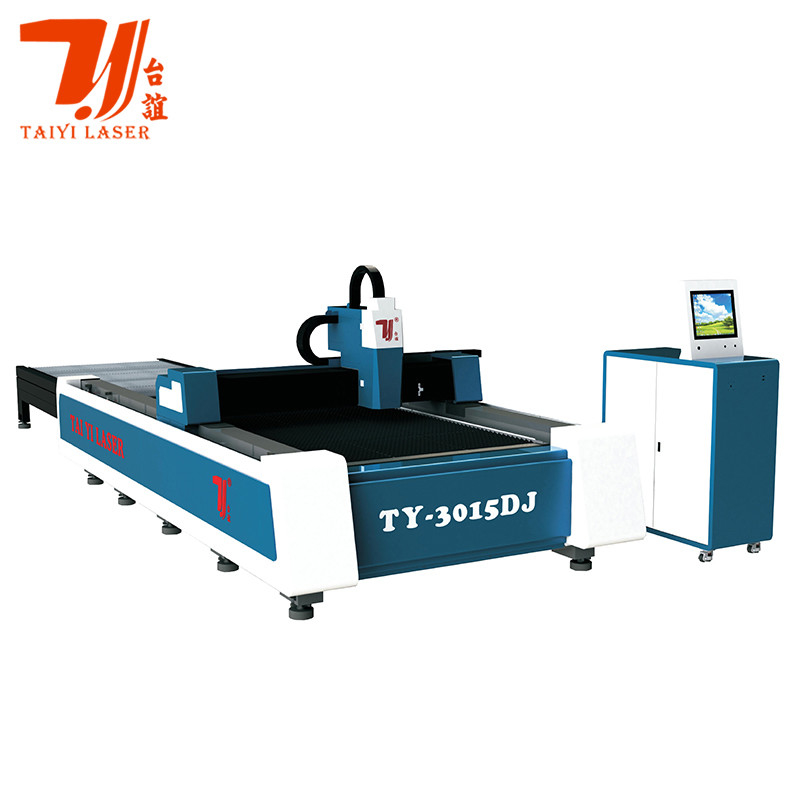

1. In order to meet the increasingly complex needs of consumers, Taiyi is targeted at market demand, independently developed TY3015DJ sheet and pipe integrated laser fiber cutting machine, one machine dual purpose, this machine solves double cutting needs by one time.
2. Low cost and the power consumption is 0.5-1.5kw/h; Customer can cut all kinds of metal sheets by blowing air;
3. High-performance. Imported the original packaged fiber laser, with stable performance and the lifespan is over 100,000 hours;
4. High speed and efficiency, the speed of cutting metal sheets close to tens of meters;
5. The laser maintenance free;
6. The cutting edge looks perfect and the appearance is smooth and beautiful;
7. Imported the transmission mechanism and servo motor, and high cutting accuracy;
8. Dedicated software enables graphic or text to be instantly designed or processed. Flexible and easy operation.
|
Working Area
|
3000*1500mm
|
4000*2000mm |
6000*2500mm
|
| Applicable Materials | Stainless steel, carbon steel, alloy steel, spring steel, copper plate, aluminum plate, gold, silver, titaniu metc metal plate | ||
| Laser Power | 1000W 1500W 2000W 3000W 4000W 6000W Optional | ||
| Materials Thickness | Max 40mm | ||
| Laser source | RAYCUS IPG MAX nLIGHT Optional | ||
| Laser head |
RAYTOOLS PRECITEC WSX Optional
|
||
| Dimensions(L*W*H) | 8400*3520*2200mm | 10400*4200*2200mm | 14800*5200*2200mm |
|
Accuracy of Positioning
|
±0.03mm
|
||
|
Max. Running Speed
|
120m/min
|
||
|
Max Acceleration
|
1.8G
|
||
|
Specified voltage
|
380V 50Hz/60Hz
|
||

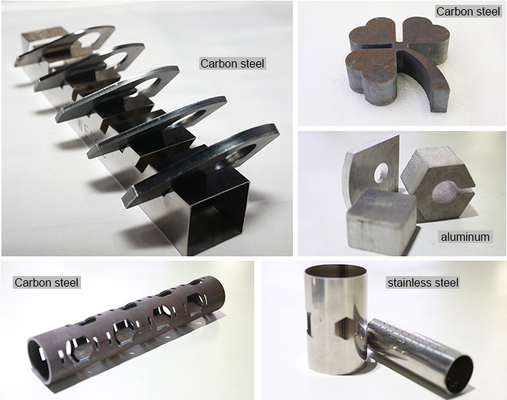

Application Materials:
Fiber Laser Cutting Equipment is suitable for metal cutting like Stainless Steel Sheet, Mild Steel
Plate, Carbon Steel Sheet, Alloy Steel Plate, Spring steel Sheet, Iron Plate, Galvanized Iron,
Galvanized Sheet, Aluminum Plate, Copper Sheet, Brass Sheet, Bronze Plate, Gold Plate, Silver
Plate, Titanium Plate, Metal Sheet, Metal Plate, Tubes and Pipes, etc
Application Industries:
Soullon Fiber Laser Cutting Machines are widely used in manufacture Billboard, Advertising, Signs,
Signage, Metal Letters, LED Letters, Kitchen Ware, Advertising Letters, Sheet Metal Processing,
Metals Components and Parts, Ironware, Chassis, Racks & Cabinets Processing, Metal crafts,
metal art ware, elevator panel cutting, hardware, auto parts, Glasses Frame, Electronic Parts,
Nameplates, etc.
