Product Details:
|
| Laser Source: | Raycus Max IPG NLIGHT Optional | Laser Power: | 1000W 1500W 2000W 3000W 4000W 6000W Optional |
|---|---|---|---|
| Cutting Speed: | 70M/MIN | Maximum Acceleration: | 1.8G |
| Slit Width: | 0.1-0.5mm | Incision Roughness: | Ra3.2-25.4μm |
| Pipe Load-bearing: | 300kg | CNC System: | Cypcut |
| Machine Weight: | 4T | Electricity Demand: | 380V 50Hz/60Hz |
| Working Area: | φ30-φ220mm×6000mm | Appearance Size: | 11500×2350×2500mm |
| After-sales Service: | Engineers Can Serve Overseas | ||
| High Light: | 6000W Fiber Laser Pipe Cutting Machine,1000W Fiber Laser Pipe Cutting Machine,Cypcut Fiber Laser Tube Cutting Machine |
||
>>> Advantages

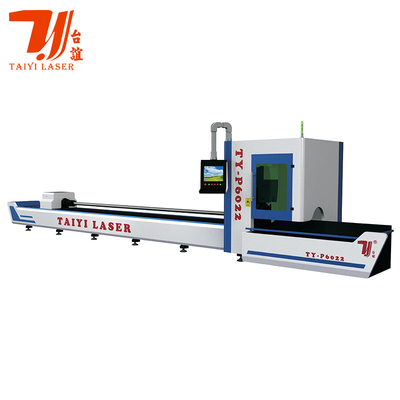

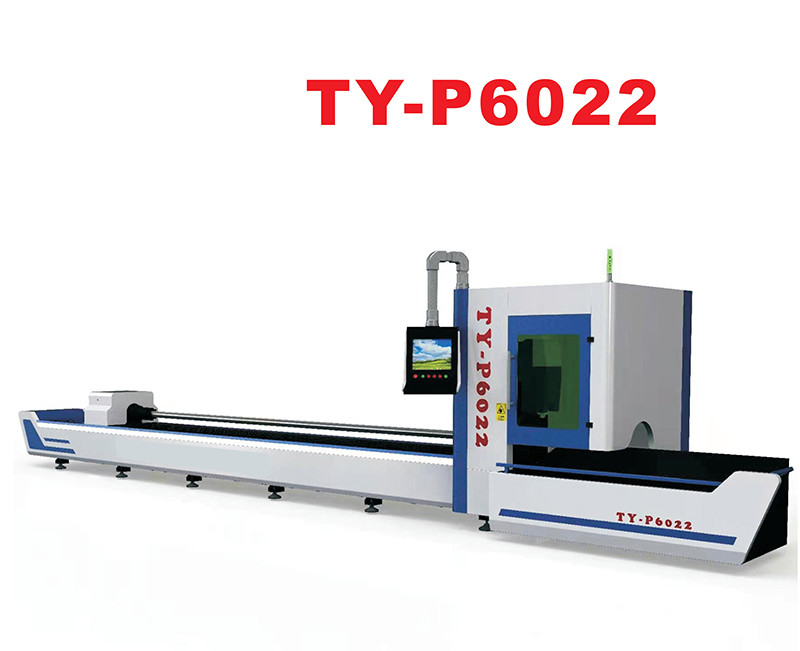

1. Professional pipe/tube cutting machine TY-P6022 with pneumatic three chuck design that can automatically identify the size and the center point of the pipe when clamping the pipe, with high centering and processing accuracy to ensure high-quality.
2. 3 chucks professional pipe cutting machine TY-P6022 of Taiyi Laser, it's head and tail chuck can easily turn around to cutting to realize Zero-tailing cutting which saves material costs more than 20,000USD.
3. Taiyi Laser tube cutting machine TY-P6022 with 3 chucks can realize "0"-tailing cutting with higher tube utilization rate and lower cost. Cutting length can be up to 6 meters with non-deformation, bring long-standing working accuracy!
4. Professional tube cutting machine TY-P6022 of Taiyi Laser with a fully automatic loading device which finishes automatically loading materials work, bring lower labor costs, and higher productivity.
>>> Product Introduction

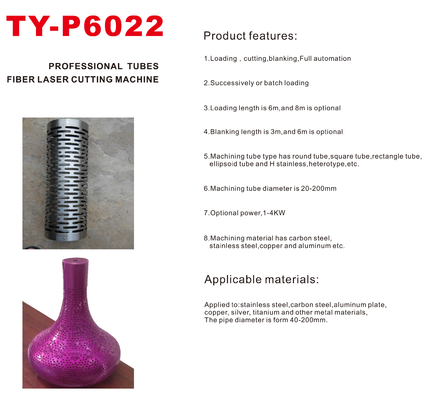

TY-P6022 has a powerful cutting function, pneumatic three chucks, can cut square pipes, round pipes, rectangular pipes and various special-shaped pipes; processing pipe diameter and length range can be customized (standard round pipe diameter Φ30~220mm, length 6000mm).
Adopt chucks and push-type cutting method, with high centering precision and processing precision.

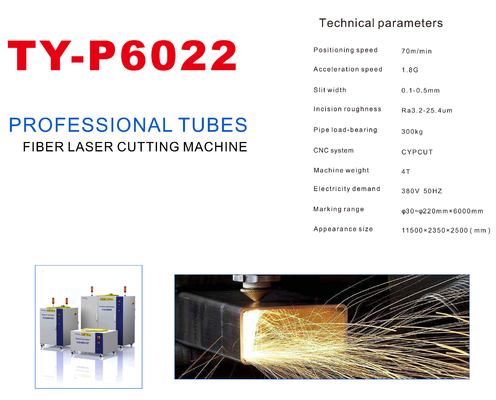

>>> Technical parameters
| Processing format (L/W) | 6000mm x φ220mm | Machine area | 12500mm×2500mm | |||
| X axis length | 450mm | Machine volume | 12500mmx2500mmx2650mm | |||
| Y axis length | 7500mm | CNC system | Cypcut bus pipe cutting system | |||
| Z axis length | 450mm | Monitor | 17″LCD | |||
| W axis length | Infinite rotation | |||||
| Laser power | (Customer selection) | |||||
| X/Y axis geometric positioning accuracy | ≤0.05mm | Transfer method | Rack and pinion drive | |||
| X/Y axis repeat positioning accuracy | ≤0.03mm | Maximum load-bearing pipe cutting | 300Kg | |||
| X/Y axis maximum positioning speed | 70m/min | Machine weight | 10.0T | |||
| X/Y axis maximum acceleration | 1.8G | Equipment power | 33.75KW (Does not contain laser, chiller) |
|||
| Cutting range | Conventional pipes with circumscribed circle<Φ220mm | Phase | 3 | |||
| Maximum weight of pipe | 30Kg/M | Power supply rated voltage | 380V | |||
| Total power protection level | IP54 | Frequency | 50Hz | |||
>>> Application
1. Applicable to all kinds of commonly used closed and non-closed metal pipe processing, such as: square pass, round pipe, elliptical pipe, angle iron, channel steel, I-beam, etc.
2. Application industry: kitchen utensils, lighting hardware, precision parts, sheet metal processing and other metal products processing industries;
3. Application materials: carbon steel, stainless steel, copper, aluminum, galvanized pipe, electrolytic plate and other metal materials.
