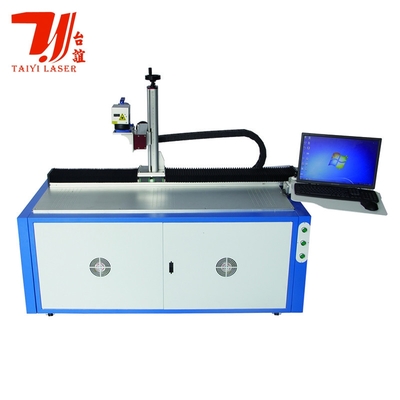

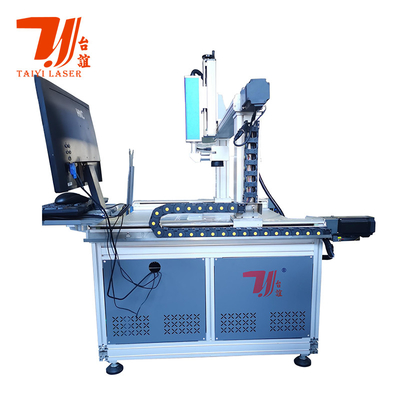

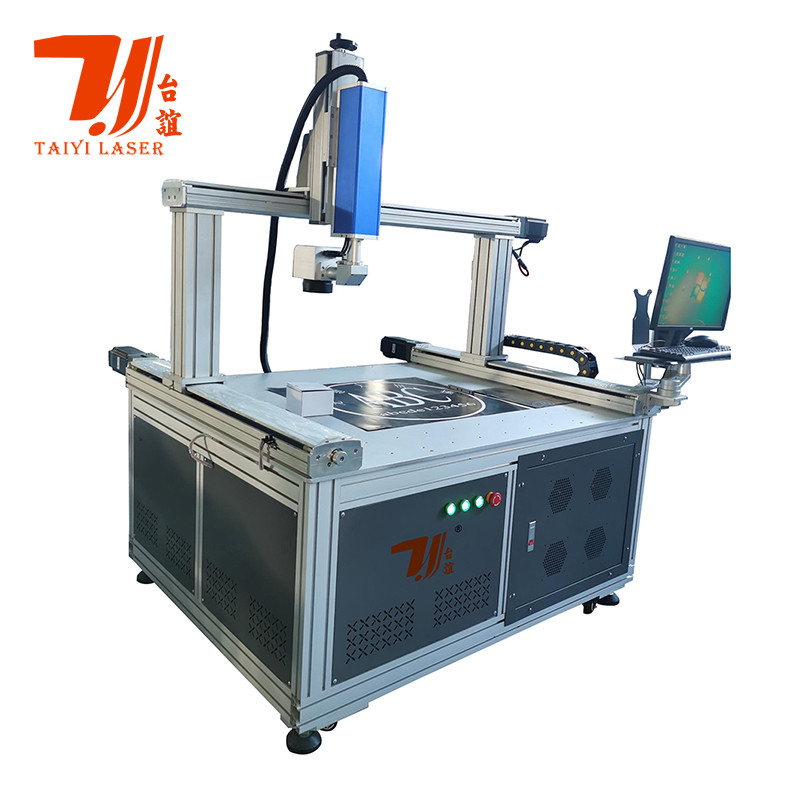

Product Details:
|
| Product Name: | Large Laser Printing Marking Machine | Laser Power: | 50W 100W 150W 200W Optional |
|---|---|---|---|
| Laser Source: | Raycus Max IPG JPT Optional | Control Software: | EZCAD |
| Warranty: | 2 Years | Marking Speed: | 7000mm/s |
| Laser Wavelength: | 1064nm | Applicable Material: | Metal And 80% Plastic |
| Lifespan Of Laser Device: | 100,000 Hours | Power Supply: | AC220V 50HZ/60HZ |
| After-sales Service: | Can Provide Overseas Services | ||
| High Light: | Gantry Fiber Laser Marker,Glass Mirror Fiber Laser Marker,1200x1200 Laser Marking Machine |
||
Product Description:
Fiber laser marking machines use laser beams to permanently mark the surface of various materials. The effect of marking is to expose the deep material through the evaporation of the surface material, or to "engrave" traces through the physical changes of the surface material caused by light energy, or to burn off part of the material through light energy to reveal the desired etching pattern , text, barcodes and other graphics.
Features:
1. It can process a variety of metal and non-metal materials. In particular, it is more advantageous to mark high hardness, high melting point and brittle materials.
2. It belongs to non-contact processing, does not damage the product, has no tool wear, and has good marking quality.
3. The laser beam is thin, the processing material consumption is small, and the processing heat affected zone is small.
4. High processing efficiency, computer control, easy to realize automation.
Applicable Industries:
Widely used in integrated circuit chips, computer accessories, industrial bearings, clocks, electronic and communication products, aerospace devices, various auto parts, home appliances, hardware tools, molds, wires and cables, food packaging, jewelry, tobacco and military affairs, etc. Field graphics and text marking, as well as high-volume production line jobs.
Applicable Materials:
1. All metals: gold, silver, titanium, copper, alloy, aluminum, steel, manganese steel, magnesium, zinc, stainless steel, carbon steel / mild steel, all kinds of alloy steel, electrolytic plate, brass plate, galvanized sheet , Aluminum, all kinds of alloy plates, all kinds of sheet metal, rare metals, coated metal, anodized aluminum and other special surface treatment, electroplating the surface of the aluminum-magnesium alloy surface oxygen decomposition
2. Non-metallic: non-metallic coating materials, industrial plastics, hard plastics, rubber, ceramics, resins, cartons, leather, clothes , wood, paper, plexiglass, epoxy resin, acrylic resin, unsaturated polyester resin material
Technical Parameters:
| Laser power | 50W 100W 150W 200W optional |
| Laser source | Raycus/IPG/JPT Mopa |
| Control board | BJJCZ |
| Control software | JCZ Ezcad |
| Galvo head | Sino-Galvo |
| Laser lifespan | 100,000 hours |
| Laser beam | 1064nm |
| Optical quality | m2≤2 |
| Repeat frequency | 20khz-100khz |
| Marking speed | 0-7000mm/s |
| Marking range | 110mm*110mm standard (optional) |
| Min.Line | 0.01mm |
| Repeat precision | ±0.003mm |
| Power consumption | ≤800w |
| Voltage | AC220V 50Hz |
| Cooling mode | Air cooling |
| Cabinet size | Can be customized |
| Supported characters | Any fonts downloaded on computer |
| Supported format | DWG,DFX,BMP,JPG,PNG,TIF,PCX, TAG, GIF, PLT etc.. |
| Supported Bar code | CODE39, EAN, CODE128, Data Matrix, PDF417 etc.. |
