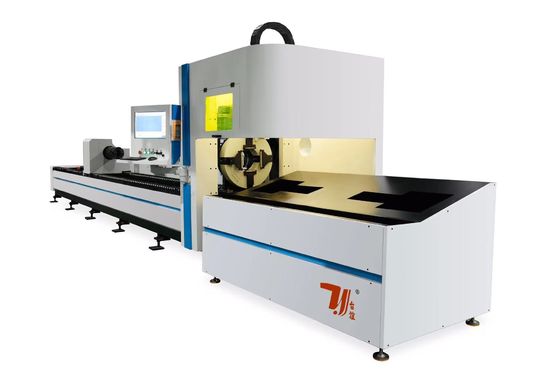

CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine

CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine
CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine
CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine

Large Image :  CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine

Product Details:
Place of Origin: China
Brand Name: TAIYI
Certification: CE
Model Number: TY-6035
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: Contact us for the price
Packaging Details: Export standard packing
Delivery Time: 20-50 work days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 100 Sets/month
Contact Now

CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine

Description
Laser Source: Raycus Max IPG Optional Laser Power: 2000W/3000W/6000W
Cutting Speed: 100M/MIN Maximum Acceleration: 1.5G
Working Area: 6035 Repeating Accuracy: ±0.03mm
Cooling Mode: Water Cooling Electricity Demand: 380V 50Hz/60Hz
Laser Head: Raytools WSX OSPRI Optional Control System: Cypcut Raytools Optional
Cutting Materials: Stainless Steel Carbon Steel Etc After-sales Service: Online Support/Engineers Can Serve Overseas
Chuck Speed: 120rpm

CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine

CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine 0

CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine 1CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine 2CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine 3CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine 4CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine 5

CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine 6

 Laser source  Raycus (Option:Max,IPG,BWT)
 Output power of laser source  2000W/3000W/6000W optional
 Cutting Area 6000*350mm
Max Cutting Pipe Dia 60mm
Min Cutting Pipe Dia 20mm
 Max positioning speed  100m/min
Maximum Acceleration  1.5G
Positioning Accuracy ±0.03mm
 Laser cutting head  Raytools (option: WSX)
 Control system  Raytools(option:Cpycut)
 Transmission  Double Drive Gear Rack
 Guide rail  Taiwan Hiwin Guide Rail
 Electricity demand  380V    50Hz/60HZ
 Working temperature  0-50℃
 Cooling  Water cooling
 Continuous working time  24 Hours
 Appearance size  12000*2800*2400mm

CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine 7

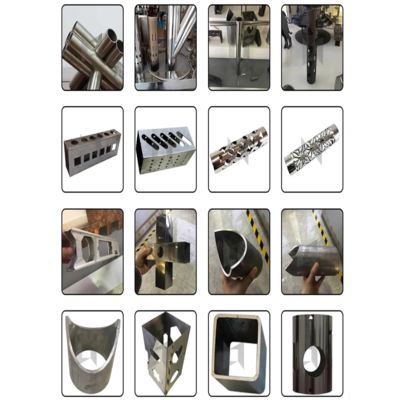

Applied materials:
Mainly used for cutting carbon steel, silicon steel, stainless steel, aluminum alloy, titanium alloy, galvanized steel sheet, pickling board, aluminum zinc plate, copper and many kinds of metal materials cutting and so on.

Applied Industries:

Fiber laser cutting machine applied in sheet metal processing, aviation, spaceflight, electronics, electrical appliances, subway parts, automobile, machinery, precision components, ships, metallurgical equipment, elevator, household appliances, gifts and crafts, tool processing, adornment, advertising, metal foreign processing various manufacturing processing industries.



CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine 8

CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine 9

CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine 10

CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine 11CNC Semi-Auto Round Square Tube Fiber Laser Cutting Machine 12
