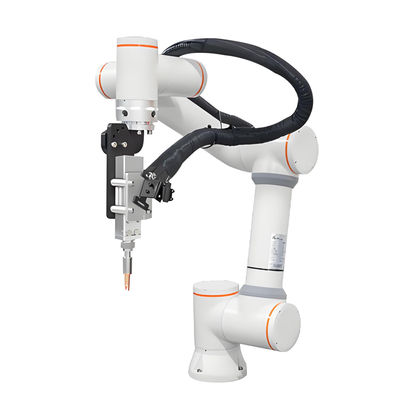

Benchtop Micro Cobot Laser Welding Machine, 1500W for Precision Medical Device Welding

Benchtop Micro Cobot Laser Welding Machine, 1500W for Precision Medical Device Welding
Benchtop Micro Cobot Laser Welding Machine, 1500W for Precision Medical Device Welding Benchtop Micro Cobot Laser Welding Machine, 1500W for Precision Medical Device Welding Benchtop Micro Cobot Laser Welding Machine, 1500W for Precision Medical Device Welding Benchtop Micro Cobot Laser Welding Machine, 1500W for Precision Medical Device Welding

Large Image :  Benchtop Micro Cobot Laser Welding Machine, 1500W for Precision Medical Device Welding

Product Details:
Place of Origin: Guangdong, China
Brand Name: TAIYI
Certification: CE
Model Number: TY-HS6018
Payment & Shipping Terms:
Minimum Order Quantity: 1
Price: Contact us for the price
Packaging Details: Export standard packing
Delivery Time: 7-20 work days
Payment Terms: T/T, Western Union, MoneyGram, L/C
Supply Ability: 500 pieces
Contact Now

Benchtop Micro Cobot Laser Welding Machine, 1500W for Precision Medical Device Welding

Description
Certification: CE Condition: New
Warranty: 2 Year Applicable Material: Metal
Keywords: 6 Axis Welding Robot Custom: Accept
Highlight:

Benchtop micro cobot laser welder

,

1500W medical device welding machine

,

Precision laser welding cobot

Hot Sale Fiber Laser Welding Machine with 6-axis Collaborative Cobot ,Multiple Sizes Are Available

Benchtop Micro Cobot Laser Welding Machine, 1500W for Precision Medical Device Welding 0Benchtop Micro Cobot Laser Welding Machine, 1500W for Precision Medical Device Welding 1Benchtop Micro Cobot Laser Welding Machine, 1500W for Precision Medical Device Welding 2Benchtop Micro Cobot Laser Welding Machine, 1500W for Precision Medical Device Welding 3

Benchtop Micro Cobot Laser Welding Machine, 1500W for Precision Medical Device Welding 4

TECHNICAL GUIDANCE FOR ONTOLOGY



 Robotic Arm Parameters





































MaxArmspan

1077mm

Payload

7kg

Repeat Positioning

±0.02mm

ToolMax speed

3000mm/s

ControlBus/Freq

EtherCAT/1KHz

Rated power

260W

Temperature

-5~55℃

Humidity

5%~90%RH,non-condensing

Installation mode

Arbitrary angle

Protection Degree

IP65

weight

21kg

Noise level

≤60dB

Work port

1/0 Port

24V/18;DI:2D0:2AI

Tool Pot

COM Port

24V/1A;1RS485:1 EtherCAT
Joint Movement Parameters







Iotion Range

J1

-360°“360°

J2

-360°"360°

J3

-165°“165°

J4

-360°"360°

J5

-360°360°

J6

-360°“360°





Max Speed

J1

210°s

J2

210/s

J3

210°/s

J4

360°/s

J5

360°/s

J6

360°/s

Benchtop Micro Cobot Laser Welding Machine, 1500W for Precision Medical Device Welding 5

TECHNICAL GUIDANCE FOR ONTOLOGY

TECHNICAL GUIDANCE FOR ONTOLOGY
Robotic Arm Parameters MaxArmspan 1460.7mm
Payload 6kg
Repeat Positioning ±0.05mm
ToolMax speed 3000mm/s
ControlBus/Freq EtherCAT/1KHz
Rated power 260W
Temperature -5~55℃
Humidity 5%~90%RH,non-condensing
Installation mode Arbitrary angle
Protection Degree IP65
weight 22kg
Noise level ≤60dB
  Work port 1/O Port 24V/1A;DI;2D0;2AI
  Tool Port COM Port 124V/1A;1RS485;1EtherCAT
Joint Movement Parameters Motion Range J1 -360°~360°
J2 -360°~360°
J3 -165°~165°
J4 -360°~360°
J5 -360°~360°
J6 -360°~360°
Max Speed J1 210°s
J2 210/s
J3 210°/s
J4 360°/s
J5 360°/s
J6 360°/s



Benchtop Micro Cobot Laser Welding Machine, 1500W for Precision Medical Device Welding 6

TECHNICAL GUIDANCE FOR ONTOLOGY
Robotic Arm Parameters MaxArmspan 2027mm
Payload 20kg
Repeat Positioning ±0.05mm
ToolMax speed 4000mm/s
ControlBus/Freq EtherCAT/1KHz
Rated power 1500W
Temperature -5~55℃
Humidity 5%~90%RH,non-condensing
Installation mode Arbitrary angle
Protection Degree IP65
weight 68kg
Noise level ≤60dB
  Work port 1/O Port 24V/1A;DI;2D0;2AI
  Tool Port COM Port 124V/1A;1RS485;1EtherCAT
Joint Movement Parameters Motion Range J1 -360°~360°
J2 -360°~360°
J3 -165°~165°
J4 -360°~360°
J5 -360°~360°
J6 -360°~360°
Max Speed J1 180°s
J2 180°s
J3 210°/s
J4 270°/s
J5 270°/s
J6 270°/s



Benchtop Micro Cobot Laser Welding Machine, 1500W for Precision Medical Device Welding 7
Benchtop Micro Cobot Laser Welding Machine, 1500W for Precision Medical Device Welding 8

Benchtop Micro Cobot Laser Welding Machine, 1500W for Precision Medical Device Welding 9Benchtop Micro Cobot Laser Welding Machine, 1500W for Precision Medical Device Welding 10Benchtop Micro Cobot Laser Welding Machine, 1500W for Precision Medical Device Welding 11Benchtop Micro Cobot Laser Welding Machine, 1500W for Precision Medical Device Welding 12
